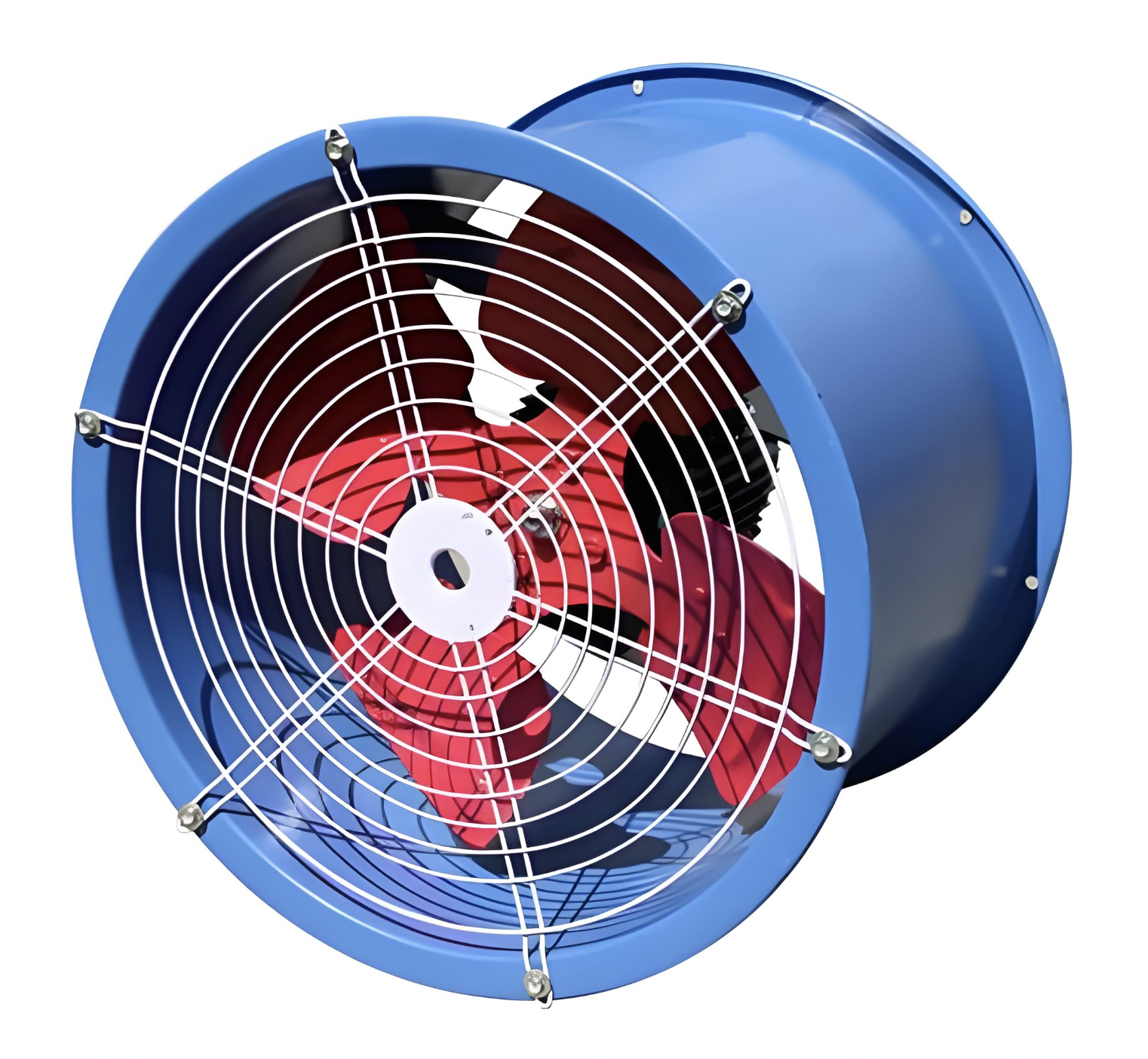

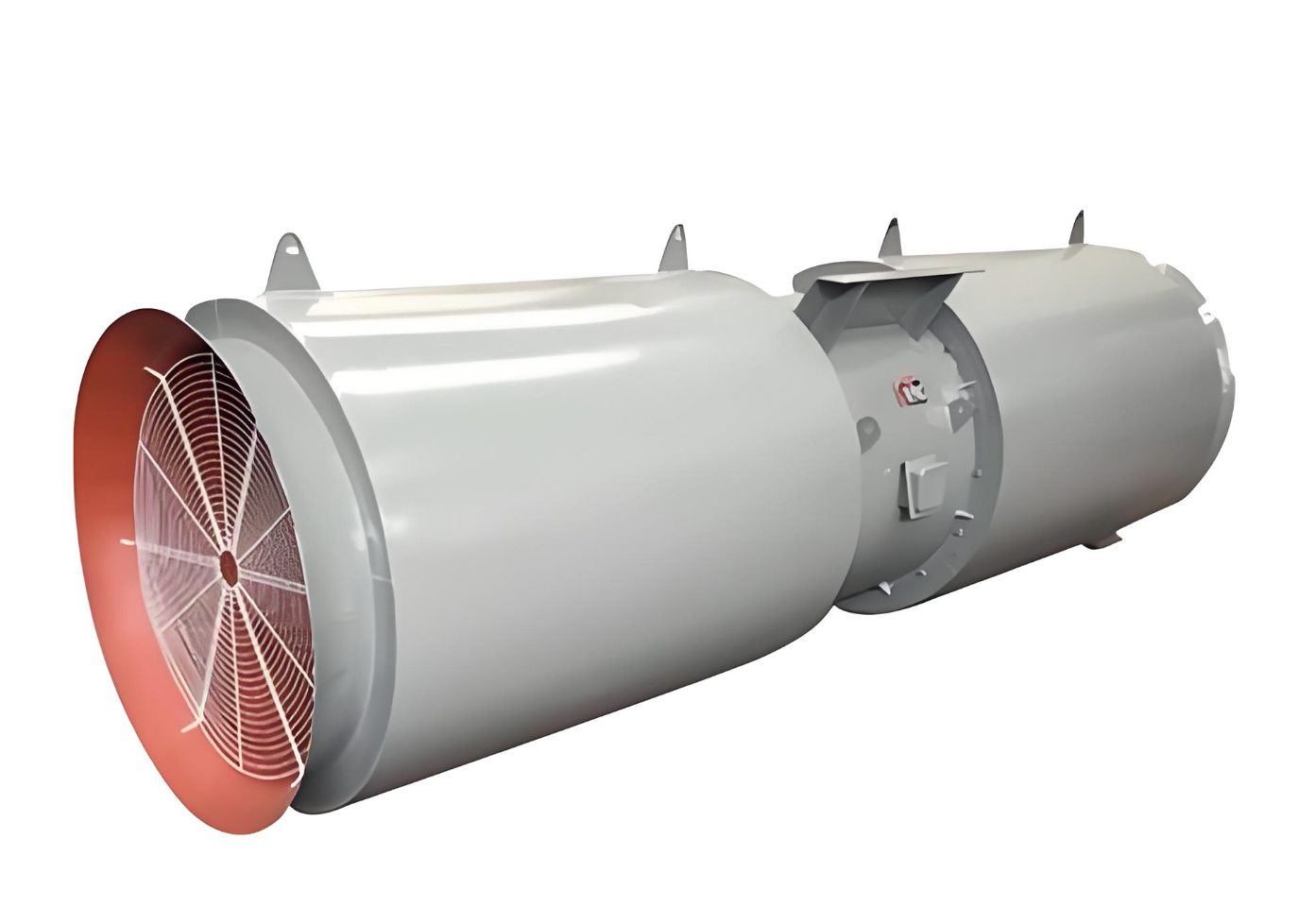

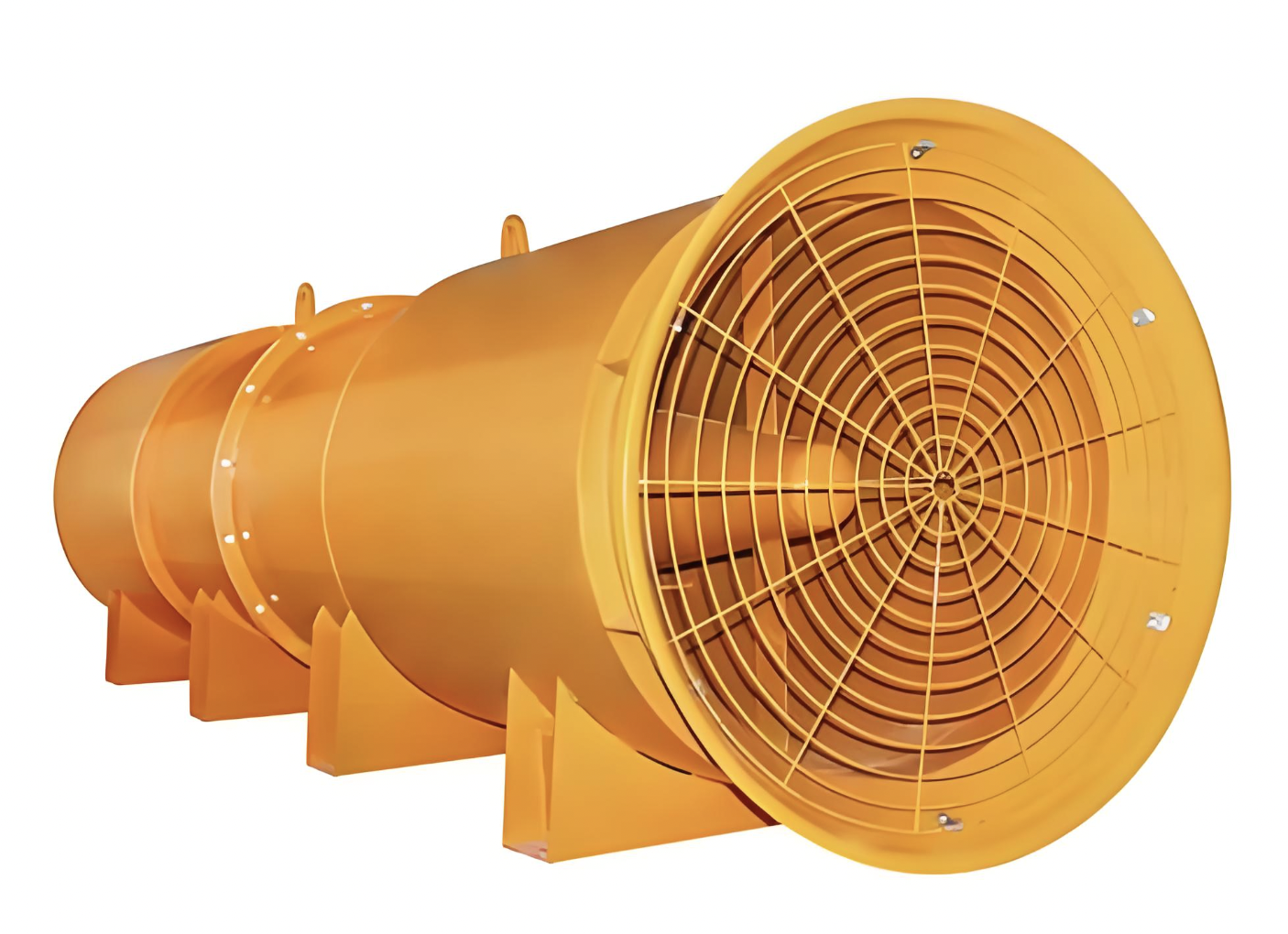

Axial Fan

  • Axial fans are designed to move large volumes of air parallel to the fan shaft, making them ideal for ventilation and cooling applications.

    Compared with centrifugal fans, axial fans provide higher airflow with lower pressure, which makes them suitable for applications requiring large air volume and energy-efficient operation.

    • Large Airflow Capacity

    • Energy-Efficient Operation

    • Low Noise Design

    • Simple Structure & Easy Installation

    • Suitable for Continuous Operation

    • Adjustable Blade Angle (Optional)

    • Axial fans mainly consist of:

    • Impeller (Blades)

    • Motor

    • Fan Casing

    • Support Frame

    • Protective Grille

    • The fan operates by rotating blades that push air along the axis, generating a high-volume airflow with low pressure.

  • Parameter Specification

    ‍ Airflow‍ Capacity 1,000 – 500,000 m³/h ‍ Pressure‍ Range‍ ‍ 50 – 1,500 Pa ‍ Fan Diameter ‍ 300 – 3,000 mm ‍ Motor Power ‍0.18 – 200 kW ‍ Speed 290 – 1,450 rpm ‍ Material Carbon Steel / Stainless Steel / FRP ‍
