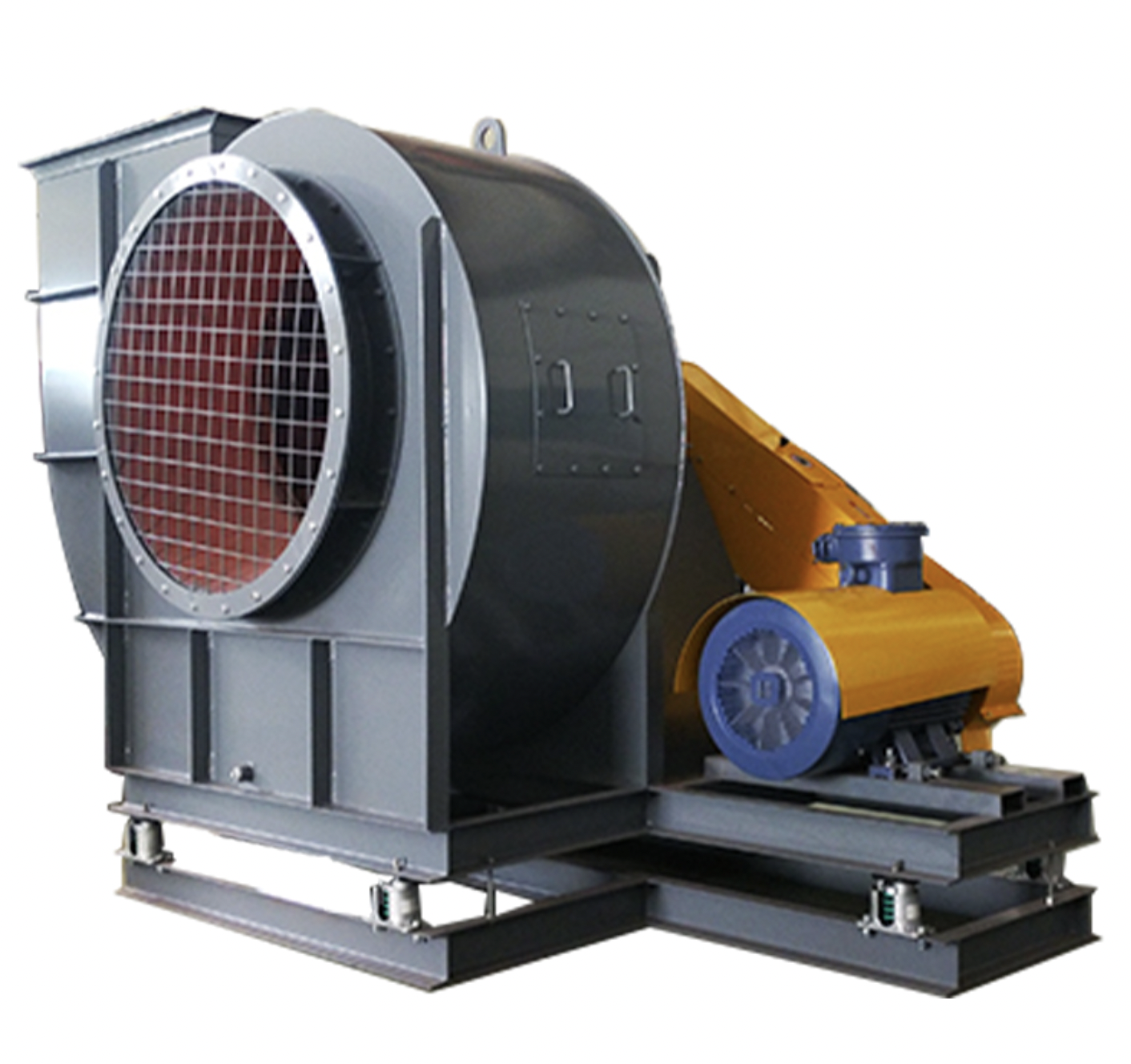

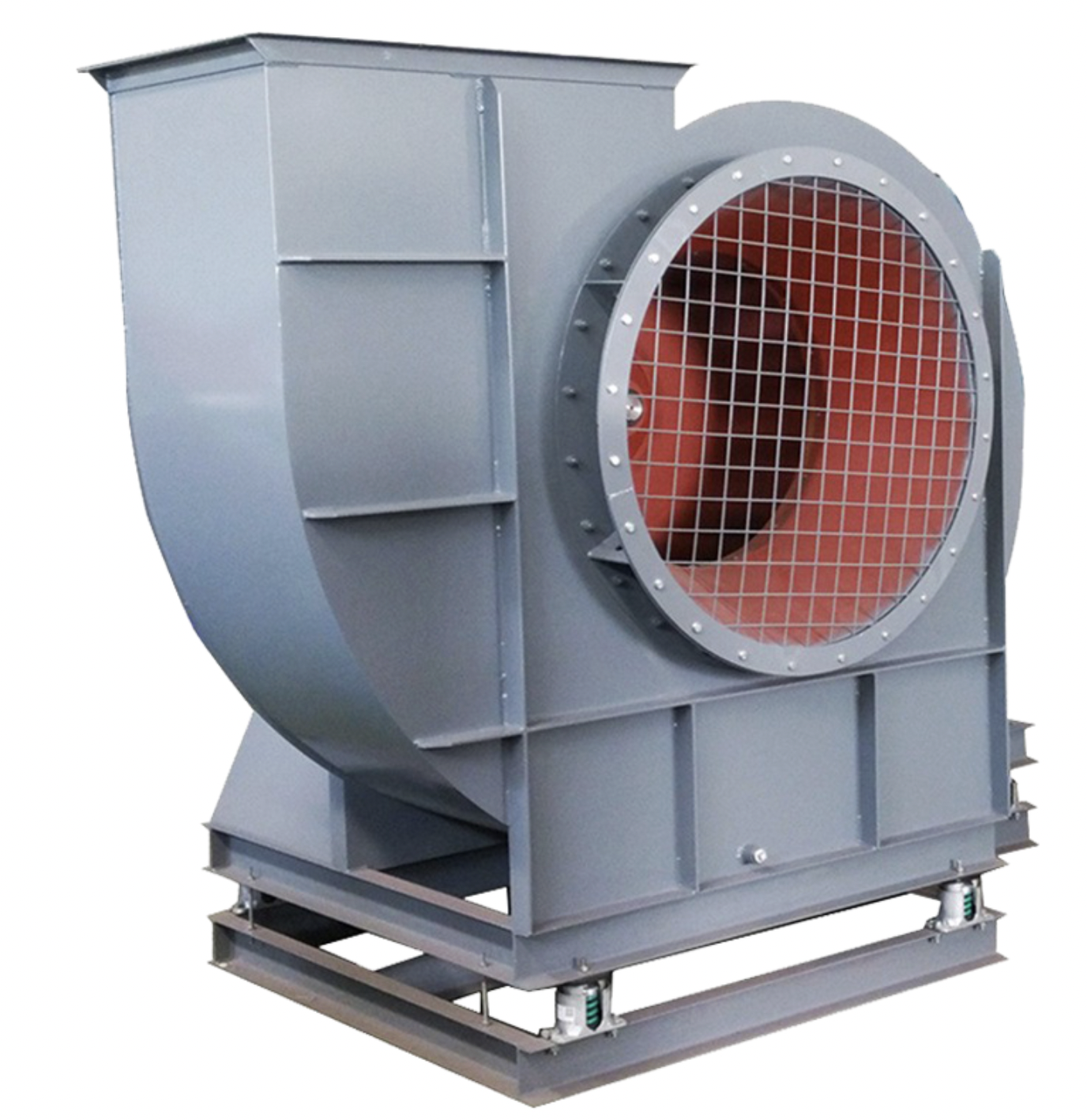

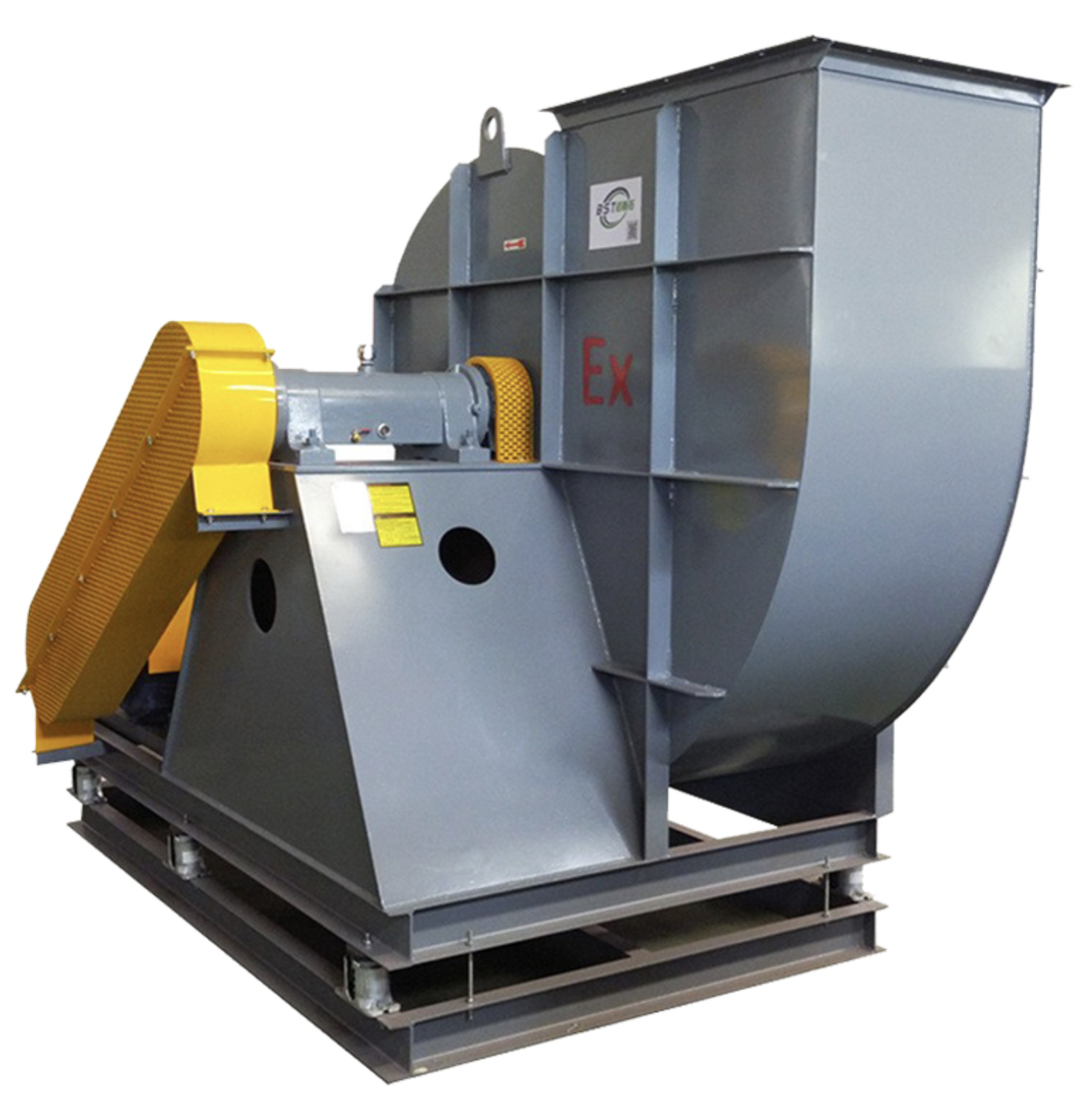

Explosion-Proof Fan
-
GSU explosion-proof centrifugal fan is an industrial equipment widely used in special environments such as high temperature, high corrosion, flammable and explosive. Its products have various models and customized services, suitable for chemical, environmental protection, boiler, drying, coating and other industries.
-
1. High temperature resistance
BST explosion-proof centrifugal fans can withstand high temperature environments up to 1660℉, and are suitable for high temperature scenes such as high temperature kilns, boiler combustion, RTO incinerators, etc.
2. Explosion-proof design
The fan adopts explosion-proof motor and explosion-proof structure design, which is suitable for environments that transport flammable and explosive gases, such as chemical plants, oil platforms, and biological fermentation workshops.
3. High efficiency and energy saving
The fan design follows the principles of German fluid mechanics, with smooth air ducts and reasonable structure, which is 20% more efficient than standard fans.
4. Diverse materials
The fan materials include carbon steel, stainless steel, alloy steel, etc., which can be selected according to customer needs.
5. Customized service
BST provides one-stop technical services from drawing design to customized solutions to meet customers' special installation locations and flue gas treatment needs. -
Parameter Specification
Airflow295 up to 294300CFM Pressure up to 81” wg Temperature up to 1660°F Static efficiency up to 80% Drive Belt and direct
