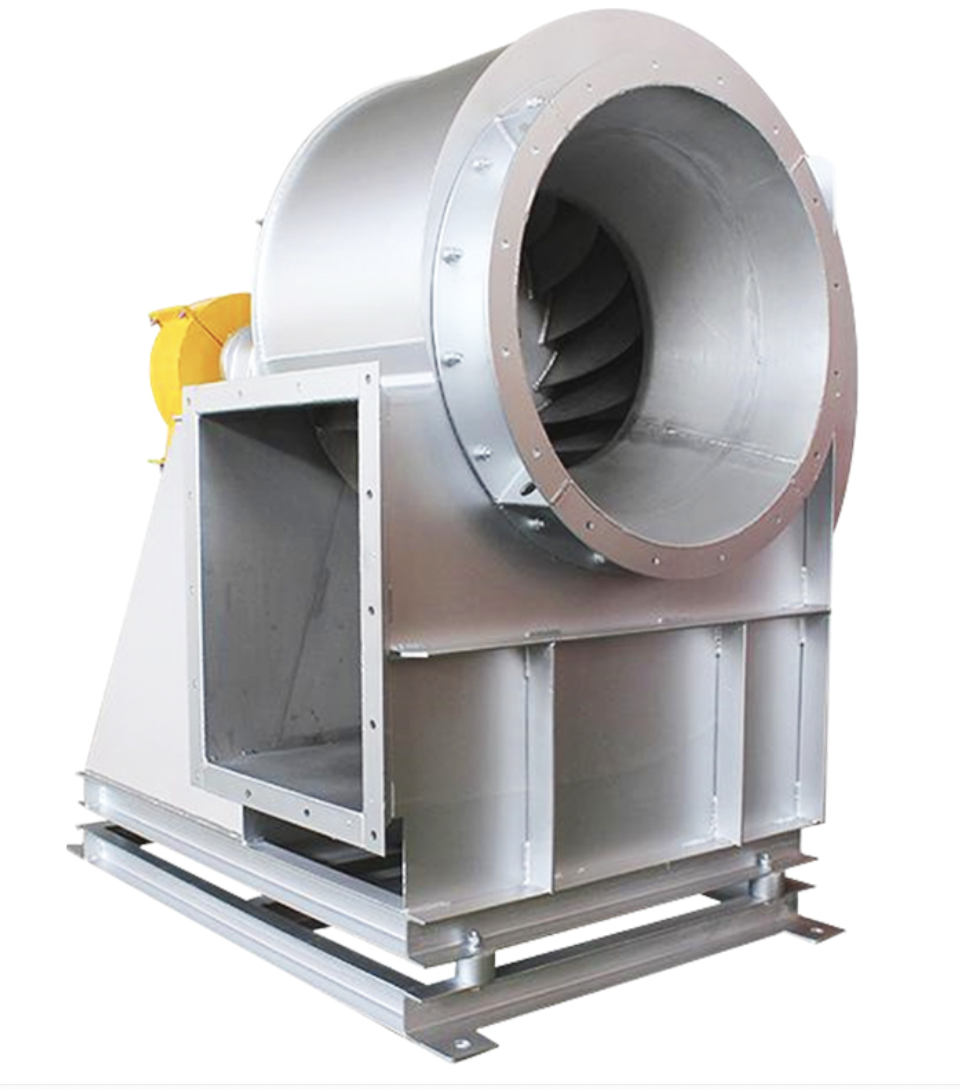

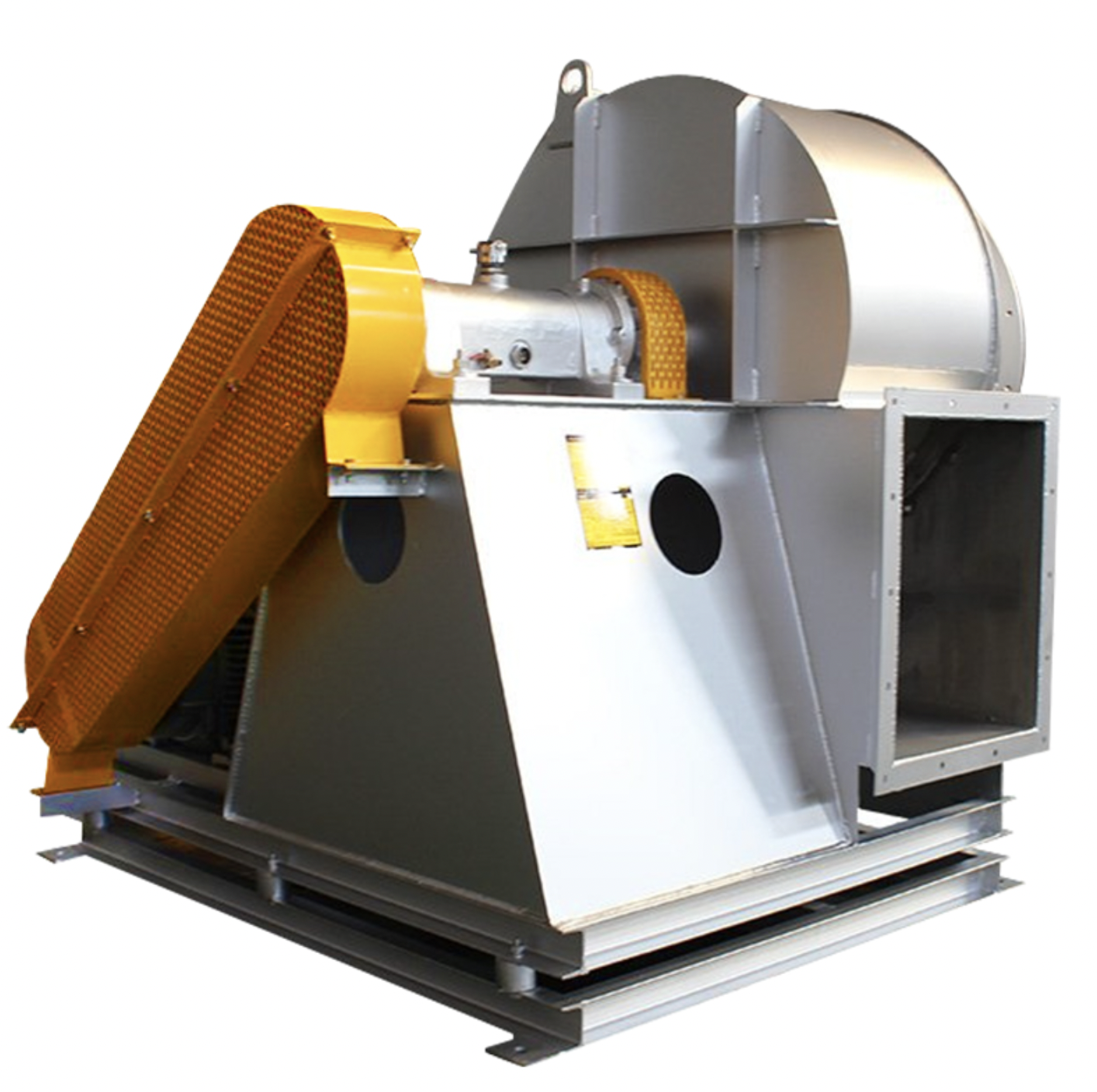

High-Temperature Circulation Fan

GSU high temperature centrifugal fan is an industrial fan designed for high temperature environment. The maximum temperature resistance can reach 1660℉, which is suitable for high temperature environments such as high temperature kilns, waste incinerators, chemical reactors, etc.

The fan material includes stainless steel, alloy steel, etc. The appropriate material can be selected according to different working conditions to ensure the temperature resistance and service life of the equipment.

1. High temperature tolerance:

GSU high temperature centrifugal fan can withstand high temperature environment up to 1660℉, suitable for high temperature application scenarios such as kilns, industrial furnaces, coating machines, etc. The temperature range of its conveying medium is between 200-1660℉. When stainless steel is used, the conveying medium temperature can reach 1660℉.

2. High efficiency and energy saving:

GSU fan design follows the advanced fluid bionic mechanics principle, the air duct is unobstructed, the structure is thick and thin, and the energy efficiency is 20% higher than the standard fan. The fan vibration value is <2.5mm/s, with a built-in muffler/soundproof box, and the factory noise value is as low as 80db.

3. Diverse materials:

The fan materials include carbon steel, stainless steel, alloy steel, etc., which meet the use requirements in different corrosive and high temperature environments. Stainless steel is particularly suitable for drying project systems to ensure the safe production of drying equipment.

4. Wide range of air volume and air pressure:

The air volume range is from 295-294300CFM, and the air pressure range is 2-81’’wg, which is suitable for a variety of industrial scenarios.

5. Environmental protection and dust removal function:

GSU fan can be equipped with a built-in dust collector and ventilation system, with a filtration area of 90%, high dust removal efficiency, low energy consumption, and lower operating costs. Its products are widely used in chemical, environmental protection, industrial furnaces and other industries.

Parameter Specification

‍ ‍Airflow295‍ up to 294300CFM‍ ‍ Pressure‍ ‍ up to 81” wg ‍ Temperature‍ ‍up to 1660°F‍ ‍ Static efficiency ‍up to 80%‍ ‍ Drive ‍ Belt and direct ‍ ‍ ‍ ‍
