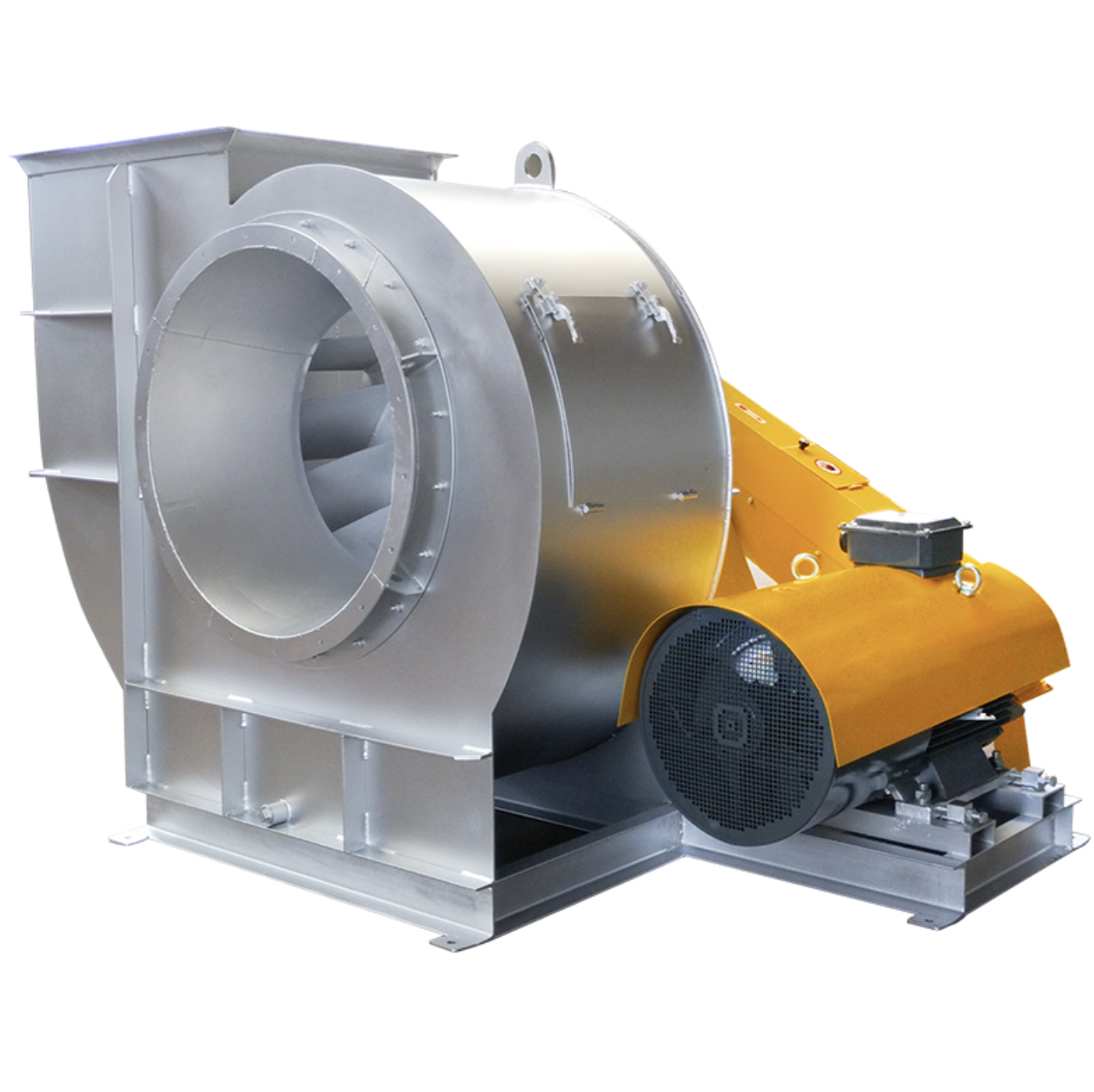

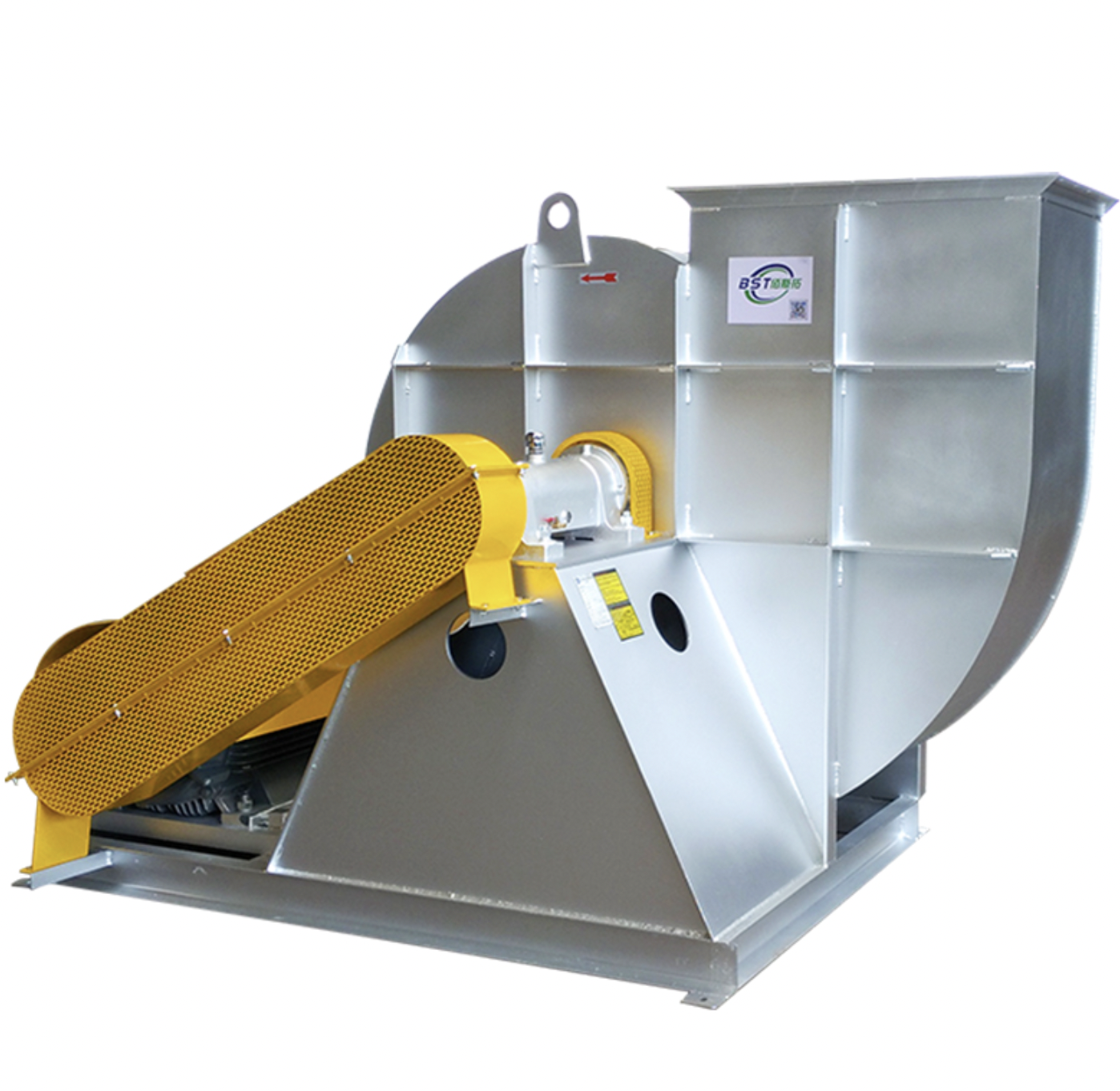

High-Temperature ID Fan

GSU high temperature induced draft fans are special equipment designed to meet the needs of high temperature gas transportation in industrial production. They are mainly used in chemical, metallurgical, energy, environmental protection, drying, coating, kiln and other industries, and can effectively transport high temperature gas to ensure the smooth progress of the production process.

1. High temperature resistance
GSU high temperature induced draft fan can withstand high temperature environment up to 1660℉, suitable for high temperature gas transportation and hot air circulation.

Its fan materials are diverse, including carbon steel, stainless steel, alloy steel, etc., which can adapt to the use requirements under different working conditions.

2. Energy-saving and high efficiency
GSU high temperature induced draft fan adopts advanced fluid mechanics design principles to ensure smooth air duct and reasonable structure, thereby improving the energy efficiency of the fan. Compared with standard fans, GSU’s fan efficiency is increased by 20%.

In addition, the vibration value of the fan is less than 2.5mm/s, the noise is as low as 80dB, the operation is stable, and the noise is well controlled.

3. Safe and reliable
GSU high temperature induced draft fan adopts fireproof materials and explosion-proof design to ensure safe operation in dangerous situations. The fan has a built-in dust collector and ventilation system, with a filtration area of 90%, high dust removal efficiency, low energy consumption, and meets national environmental protection certification standards.

Parameter Specification

‍ ‍Airflow295‍ up to 294300CFM‍ ‍ Pressure‍ ‍ up to 81” wg ‍ Temperature‍ ‍up to 1660°F‍ ‍ Static efficiency ‍up to 80%‍ ‍ Drive ‍ Belt and direct ‍ ‍ ‍ ‍
